KOMATSU PC20 Track Chain Assembly with Mid-Frequency Heat-Treatment Technology Self-Lubricated System and Precision Assembly Dimensions
KOMATSU PC20 Track Chain Assembly with Mid-Frequency Heat-Treatment Technology Self-Lubricated System and Precision Assembly Dimensions KOMATSU PC20 Track Chain Assembly with Mid-Frequency Heat-Treatment Technology Self-Lubricated System and Precision Assembly Dimensions KOMATSU PC20 Track Chain Assembly with Mid-Frequency Heat-Treatment Technology Self-Lubricated System and Precision Assembly Dimensions

KOMATSU PC20 Track Chain Assembly with Mid-Frequency Heat-Treatment Technology Self-Lubricated System and Precision Assembly Dimensions

Dettagli:
Luogo di origine: Cina (Mainland)
Marca: YT
Numero di modello: PC20
Termini di pagamento e spedizione:
Quantità di ordine minimo: 1pcs
Prezzo: negotiable
Imballaggi particolari: Packaging di esportazione
Tempi di consegna: 7-30 giorni
Termini di pagamento: L/c, t/t
Capacità di alimentazione: 10000 pezzi/mese
Contattaci

Informazioni dettagliate
Materiale: acciaio 40Mn2 o 35MnBH Tecnica: Pezzo fucinato e trattamento termico
Qualità: Trattamento termico HRC 40-55 Termine di prezzo: FOB/CFR/CIF/EXW
Colore: giallo o nero Tempo di garanzia: 12-18 mesi
Condizione: Nuovo Peso: Opzionale
Evidenziare:

Mid-Frequency Heat-Treatment Technology Track Chain Assembly

,

Self-Lubricated System Track Link Group

,

Precision Assembly Dimensions Excavator Undercarriage Spare Parts

Descrizione di prodotto

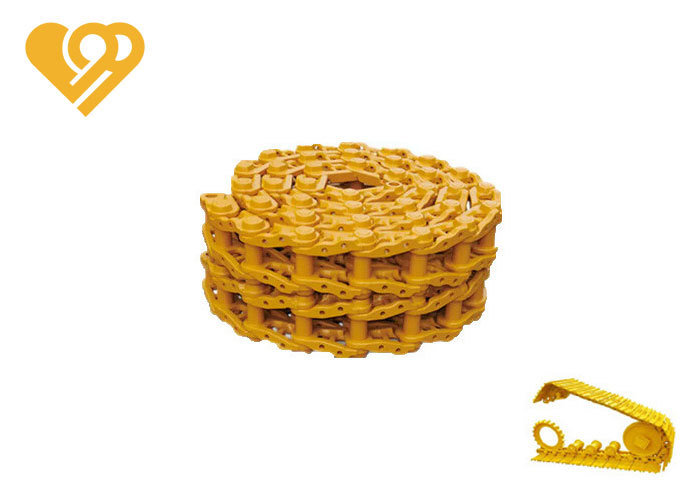

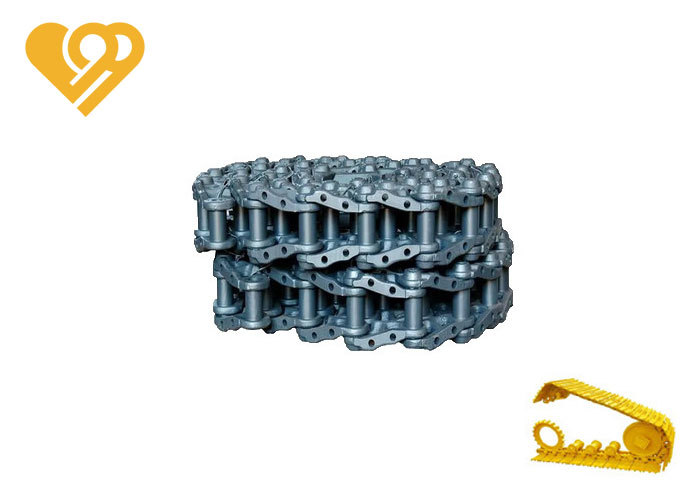

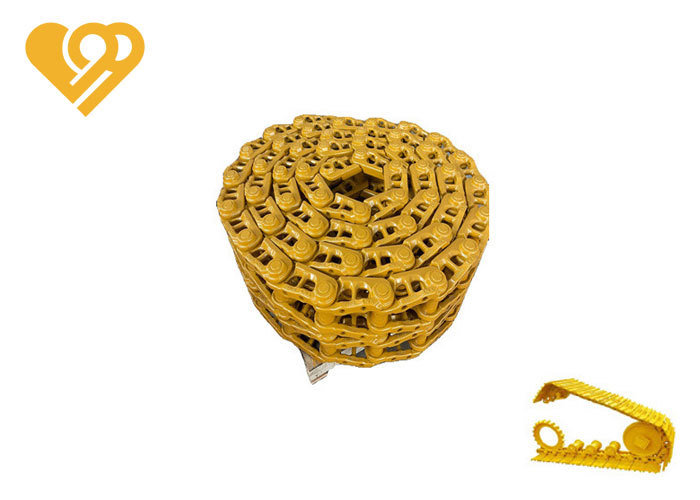

KOMATSU Excavator Undercarriage Spare Parts PC20 Track Chain Assembly
OEM Track Link Group With Mid-Frequency Heat-Treatment Technology
Track Link Features

Utilizing sophisticated machining centers, including horizontal and vertical CNC technology, we perform precision operations like cutting, boring, tapping, and grinding to guarantee component quality and accuracy. This ensures precise assembly dimensions while extending component lifespan and minimizing hourly production expenses.

Track links are manufactured from 35 MNB forged special steel, reinforced with advanced structure technology and heat treatment processes. This combination delivers maximum strength and abrasion resistance. The integrated self-lubricated system significantly enhances track chain bearing service life.

KOMATSU PC20 Track Chain Assembly with Mid-Frequency Heat-Treatment Technology Self-Lubricated System and Precision Assembly Dimensions 0
Main Dimensions of Installation
KOMATSU PC20 Track Chain Assembly with Mid-Frequency Heat-Treatment Technology Self-Lubricated System and Precision Assembly Dimensions 1
Suitable Model P A B C E F H K L
EX30/EX35/PC20/PC30/PC35R 101.6 55 55 22 10.5 35 76 63 26
IHI30J 101.6 64 64 22 10.5 44 85 63 26
PC20 101.6 52 52 22 10.5 32 73 65 28
YC35 101.6 55 55 22 12.5 35 77 70 30
TM20 101.6 55 55 22 10.5 34 72 61 29.5
PC40-7/SK45 135 93.8 63.8 46 12.5 40.4 87.4 65 30
EX40/EX45 135 104 80 46 12.5 52 105 65 30
PC60-6/PC75/SK60 154 89 73 57 14.5 45 104 74 33.5
PC100-1/2/PC100-3/HD350 154 112.4 82.4 57 14.5 49.4 124.4 87 40
EX60-1/2/3/5 154 90 90 55 14.5 56 127 80 38

The models above are for reference only. We can supply additional products to meet your requirements. Please contact us with your specific needs.

Manufacturing Processes
KOMATSU PC20 Track Chain Assembly with Mid-Frequency Heat-Treatment Technology Self-Lubricated System and Precision Assembly Dimensions 2
Our Advantages
  • World-class quality components
  • Factory-direct pricing for cost efficiency
  • Flexible payment terms including T/T and L/C
  • Fast delivery within 30 days after contract confirmation
  • Comprehensive after-sale services including video technical support and 24/7 online assistance
Customer Feedback
KOMATSU PC20 Track Chain Assembly with Mid-Frequency Heat-Treatment Technology Self-Lubricated System and Precision Assembly Dimensions 3
